Orix 70 New Edition DG
Intraoral radiographic device
Orix 70 New Edition DG is a powerful X-ray generator developed by Ardet specifically for intraoral dental radiology.
This instrument stands out for its exceptional durability, reliable performance, and ease of use.
1. Sharp and detailed images
Thanks to its advanced design and an ultra-fine focal spot of 0.4 mm, the Orix 70 New Edition DG is capable of providing sharp and detailed images with uncompromising precision, allowing dental professionals to make accurate diagnoses with greater efficiency.
2. Simple and Efficient User Experience
The device stands out for its ease of use thanks to a compact and intuitive design, an ergonomic operator interface panel, and various operating modes that allow for precise and rapid diagnosis tailored to the specific needs of the operator.
3. Automatic exposure time configuration
Users are offered the possibility to choose from a wide range of predefined anatomical settings with automatic exposure time adjustment (0.04-2 sec). Alternatively, they can operate in manual mode and customize this parameter according to their preferences.
4. Simple installation and minimal maintenance
The installation of the Orix 70 New Edition DG is straightforward and requires only a few steps. Moreover, thanks to its intelligent design, characterized by a limited number of replaceable parts, maintenance is not only simplified but also ensures greater durability over time, reducing operating costs and providing a reliable solution for dental needs.
Crafted to deliver immediate operability, the attention to design makes the Orix 70 New Edition DG a practical and modern device. The radiation beam delimitation system provides a 20 cm focus-to-skin distance and is integrated into the radiographic head structure, enhancing the system's compactness and facilitating quick and secure diagnosis.
- Double pantograph and extension arm made of extruded aluminium ensure stable and robust positioning during image acquisition.
- Extension arms available in lengths of 50 and 90 cm.
- Compact and lightweight generator.
- Manual remote control with 3-meter spiral cable.
- Quick and easy installation system.

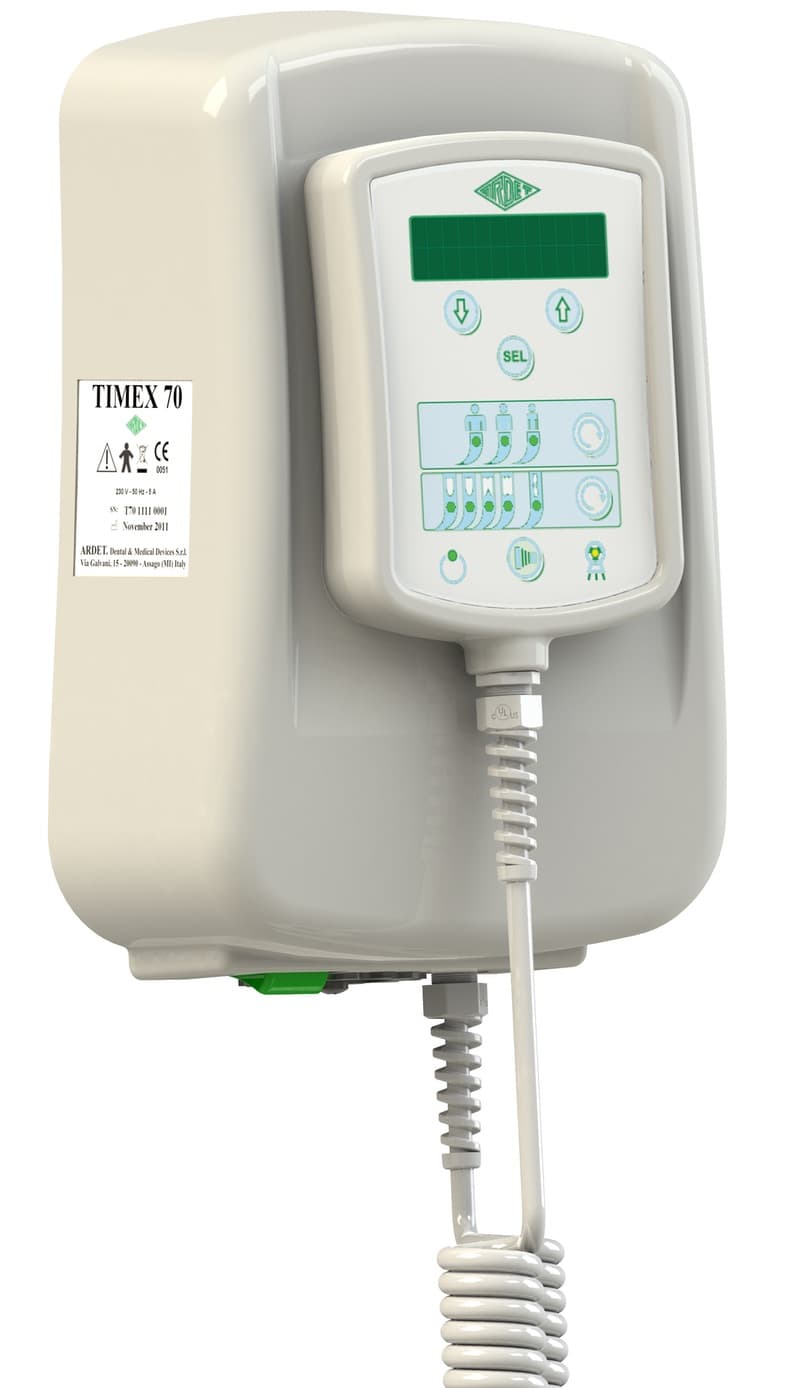

For impeccable results, the display provides a detailed view of exposure parameters, errors, and warning messages. The intuitive icon design on the timer allows users to adjust exposure parameters based on patient size, tooth type, and selected image receptor, modify exposure time for digital or film receptor.

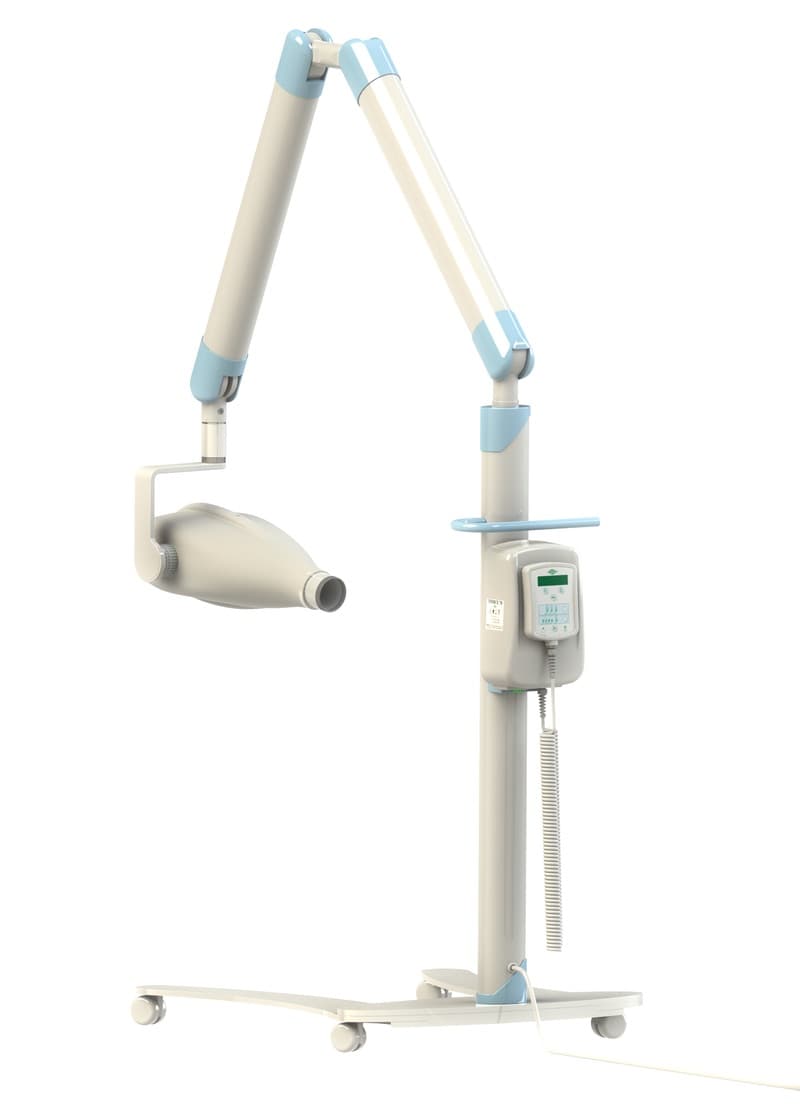

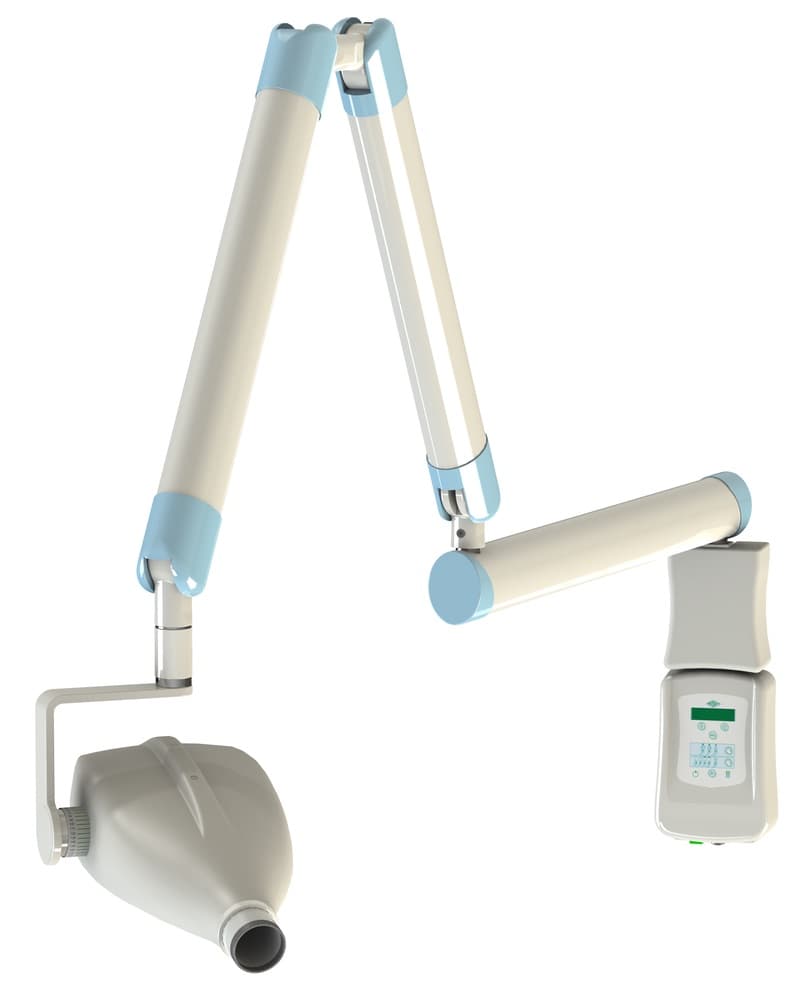

Orix 70 New Edition DG is offered in various configurations to adapt seamlessly to the professional's work environment, from the wall-mounted version for permanent installation to the mobile stand version, ideal for use in different rooms, to the fixed stand version suitable for particularly challenging installation situations.
Rectangular collimators measuring 20 x 30 mm or 30 x 40 mm.
The use of a rectangular collimator not only reduces patient radiation dose by up to two-thirds but also reduces the amount of scattered X-rays.
Compatible with all available imaging receptors on the market, the Orix 70 New Edition DG achieves optimal performance with Ardet's videoradiographic sensors or photostimulable phosphor systems
